Fuel and Lubrication Oil Market

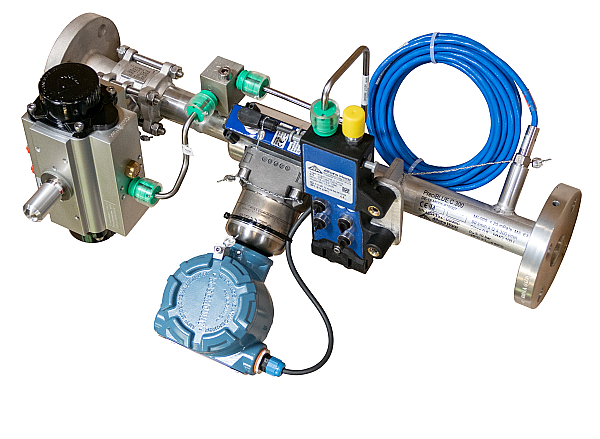

Systems for AdBlue Tanker - Venturi meter PreciBLUE

PreciBLUE tank truck delivery systems are the solution for high discharge rates of large AdBlue volumes. PreciBLUE is based on the Alfons Haar Venturi flow meter enabling wear free and consistent metering.

Differential advantages beyond other systems

PreciBLUE enables a dual metering set-up, hence deliveries of AdBlue with the dedicated metering and the regular fuel metering deliveries but with the same X-Master controller.

  • Simpler operation, one controller for all functionalities
  • Volumetric or Mass delivery
  • Single access point for back office data communication (FTL protocol) >
  • Correct and system guided workflow
  • Compact and factory pre-manufactured kits shipped for plug and play integration
  • PreciBUS and integral diagnostics for fast and superior tanker builder and field support
  • Simple and low calibration cost enabling low operational expenditures
PreciBLUE

C 300

 C 750

Measuring range [l/min]

50 - 300

150 - 750

MMQ [liter]

100

200

Inlet flange

DN25

DN50

Outlet flange

DN25

DN40

Weight [kg]

15

26

Related documents

For additional hose reel and pumped bulk delivery application capabilties reference our Metering Solutions >
