Fuel and Lubrication Oil Market

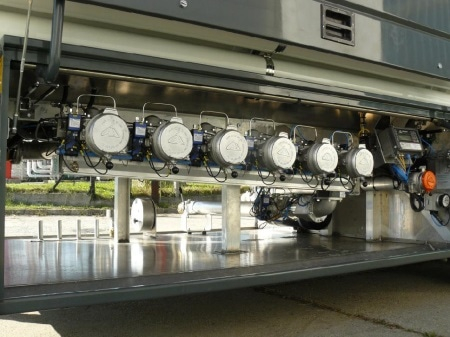

Fuel tanker delivery system for service station, bulk and industrial deliveries by gravity

PreciTURBO tank truck delivery systems are the solution for high discharge rates of large volumes either metered or direct delivered by gravity. PreciTURBO is based on the Alfons Haar helical turbine flow meter enabling also split compartment deliveries. The solely or additional use of the turbine meter is selectable at each delivery.

PreciTURBO enables multi-product/compartment deliveries of Diesel, Gasoline’s, Jet fuel (Jet, Kerosene, AVGAS) in parallel and by two methods simultaneously.

Dry hose deliverymethods

  • Multi compartment/product direct gravity discharges
  • Metered gravity discharge

At direct delivery the flow is not restricted through the low pressure drop Alfons Haar unique manifold system and achieves the fastest possible discharges.

Differential advantage of zero contamination

The turbine technology based metering system PreciTURBO is proven as a fully dryable metering system, hence completely clean and does not require unproductive system flushing.

The nominal DN100 sized turbine meter outlet is featured with a X-Master controlled two-stage shut-off valve for a metered flow rate up to 1,000 LPM. The system leaves the meter within seconds fully drained after delivery, ready for the immediate product change if required.

The meter can be used in parallel to a multi compartment direct delivery to enable time saving split compartment deliveries.

In addition the system offers fully automated compartment sequencing; this means discharging multiple compartments with the same product through one metered hose connection. Jumper hoses are not required which safes weight, time and eliminates environmental and human resource risks.

Expandable capabilities on demand

PreciTURBO is based on PreciCONTROL, the only future proof PreciBUS driven system on the market. PreciBUS establishes communications across the entire delivery system components without any junction box, is weight and measures type approved, IP 67 and ATEX Zone 1 (intrinsically safe) certified. The system may also feature:

One X-Master controlling simultaneously metered and direct deliveries by gravity in parallel plus

Differential advantages beyond other systems

Alfons Haar focuses on the best driver conveniences and fleet operator competiveness through continues improvement strategies in cooperation with customers. In result PreciTURBO offers for example:

  • Simpler operation, one controller for all functionalities
  • Single access point for back office data communication (FTL protocol) >
  • Correct and system guided workflow (example cross over prevention, insurance of compartment emptying)
  • ZERO contamination
  • Wider application range; accurate small batch or very fast large quantity deliveries
  • After SPDS only solution the second lowest bottom line system weight
  • Compact design; factory pre-manufactured kits shipped for plug and play integration
  • PreciBUS and integral diagnostics for fast and superior tanker builder and field support
  • Simple and low calibration cost enabling low operational expenditures
  • Meter / inventory real-time check feature

Related documents

PreciTURBO C 1000 - metering system, gravity deliveries (zero contaminating)

 For additional hose reel and pumped bulk delivery application capabilties reference PreciPURE
